মসৃণ কাটিয়া প্রান্ত সহ দুই স্লাইড PCB বিভাজক PCB রাউটার মেশিন

Two Slide PCB Separator PCB Router Machine with Smooth Cutting Edge
Two Slide PCB Separator PCB Router Machine with Smooth Cutting Edge Two Slide PCB Separator PCB Router Machine with Smooth Cutting Edge

বড় ইমেজ :  মসৃণ কাটিয়া প্রান্ত সহ দুই স্লাইড PCB বিভাজক PCB রাউটার মেশিন

পণ্যের বিবরণ:

উৎপত্তি স্থল: ডংগুয়ান চীন
পরিচিতিমুলক নাম: Chuangwei
সাক্ষ্যদান: CE ISO
মডেল নম্বার: CW-F01-S

প্রদান:

ন্যূনতম চাহিদার পরিমাণ: 1 সেট
মূল্য: Negotiable
প্যাকেজিং বিবরণ: each set be packed in carton boxes
ডেলিভারি সময়: 1-3 days after payment confirm
পরিশোধের শর্ত: T/T, L/C,paypal
যোগানের ক্ষমতা: 300 sets per month
বিস্তারিত পণ্যের বর্ণনা
বর্ণনা: দুই স্লাইড PCB বিভাজক টাইপ: রাউটিং
টাকু: কাভো মেশিনের ওজন: 600 কেজি
পিসিবি সাইজ: 450*350 মিমি টাকু গতি: 60000RPM
লক্ষণীয় করা:

automatic router machine

,

pcb depaneling router



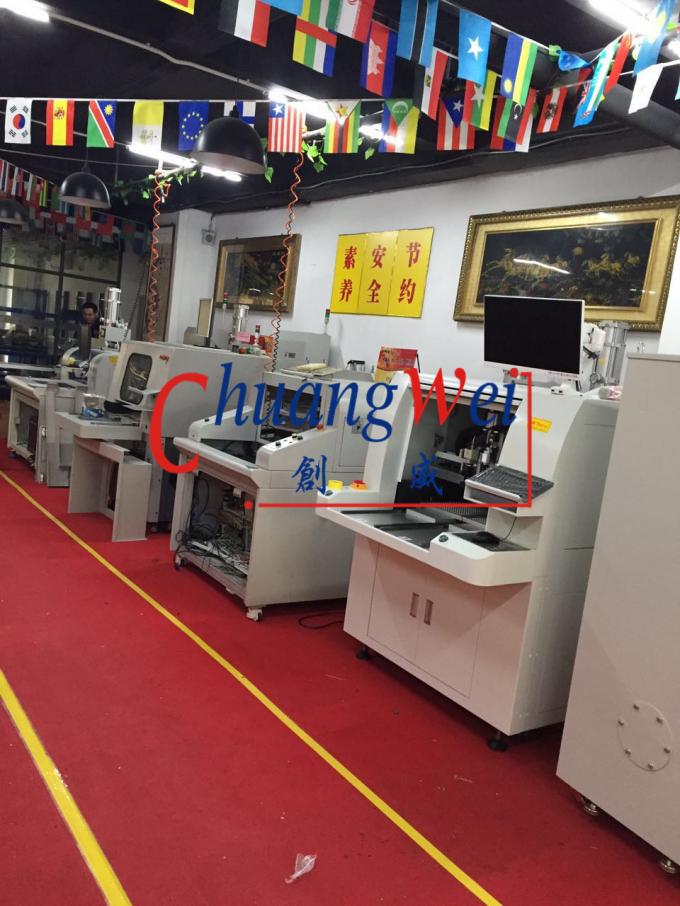

Two-slide PCB Separator for The Best Depaneling Solution with Smooth Cutting Edge



Features :

1. Two-slide PCB Separator

2. Low stress

3. Sharp cutting edge

4. Manul loading /unloading

5. High speed cutting by 4 axes control

6. Easy teaching with image processing

Description

2-way Sliding Exchanger

This work exchanger provides a simultaneously in-and-out working space to limit the idle time, which in turn reaches the utmost output value.

Route Duplication

The user only needs to set two referent points to duplicate a same route in saving programming time.

Routing Bit Sectioning

The user may set a designated distance, and have the routing bit shift-up or -down in order to make a new section of touting bit to cut boards for multiplying the life of the routing bit.

Friendly GUI

Windows XP system and Graphical User Interface (GUI) is adopted, which enables the user to learn and use the program easily. A 10 x zoom-in image is shown on screen for setting all points.



Specification

  • Setting Fixture : 2 stations
  • Working Area : X: 320mm, Y: 320mm, Z: 60mm
  • Cutting Area : Max: X: 320mm, Y: 320mm Min: X: 100mm, Y: 100mm Z: 15mm
  • PCB Component Height : Top side: 15mm Bottom side: 45mm(with specific jig)
  • PCB Thickness : 0.5 to 3.0 mm
  • Router Bit Diameter : 0.8 ~ 2.0 mm(Option: Over 2.0mm)
  • Precision of Cutting : ± 0.10 mm
  • Positioning Accuracy : ± 0.01mm
  • Positioning Repeatability : ± 0.02mm
  • Number of Axis in use : 7 Axis (X, YL, YR, Z, Carry, P/P, Conveyor).
  • Driving Speed (Max) : X, YL, YR : 1000mm/sec, Z: 750mm/sec
  • Cutting Speed (Max) : X, Y, Z: 100mm/sec (It's according to the specification of Bit for the best speed setting )
  • Spindle Motor : High speed variable frequency motor 150W (Max.50,000rpm)
  • Bit Change : Manual
  • Cutting Ability : Linear, Circular, U-curve, Arc, L-curve
  • Motor of Axis : 7 Axes (150W AC Servo motors)
  • Bit Shift Count : Max. 2
  • Route Planning : Direct coordinate input or manual guiding with × 10 CCD camera
  • Safety Area Sensor : n/a
  • Bit Break Detection : Standard
  • Program Storage : HDD
  • Program Backup : USB
  • Operating System : Windows 7
  • Man-Machine Interface : Touchscreen Industrial Monitor + Keyboard + Mouse
  • Conveyor Adjustment : Manual adjustment Max: Y: 350mm Min: Y: 100mm
  • Conveyor load capacity : Max: 2 Kg
  • PCB Loading/Unloading : Automatic
  • Power Supply : 3 Phase AC220V±3% 50Hz/ 60Hz, 3.5 kw
  • Air : 0.5Mpa
  • Dimensions : (W)2002mm x (D)1279mm x (H)1716mm + 578mm signal tower
  • Weight : approx. 500 Kg
